| A Min_Cust. piece part grip dia | : | 4 |
| A Max_Cust. piece part grip dia | : | 10 |
| B | : | 3.5 |
| C | : | 3.75 |
| D | : | 1.114 |
| E | : | 1 |
| F _ Flange diameter | : | 7.5 |
Show more dimensions
| G | : | 2.75 |
| H | : | 0.5 |
| J | : | 1.645 |
| K | : | 3.125 |
| L | : | 2 |
| M | : | 0.117 |
| N | : | 7.875 |
| P | : | 3.75 |
| R | : | 1.784 |
| S | : | 0.875 |
| T | : | 3.203 |
| U | : | 1.75 |
| V | : | 1.875 |
double-taper-long-locators-l;double-taper-long-locators

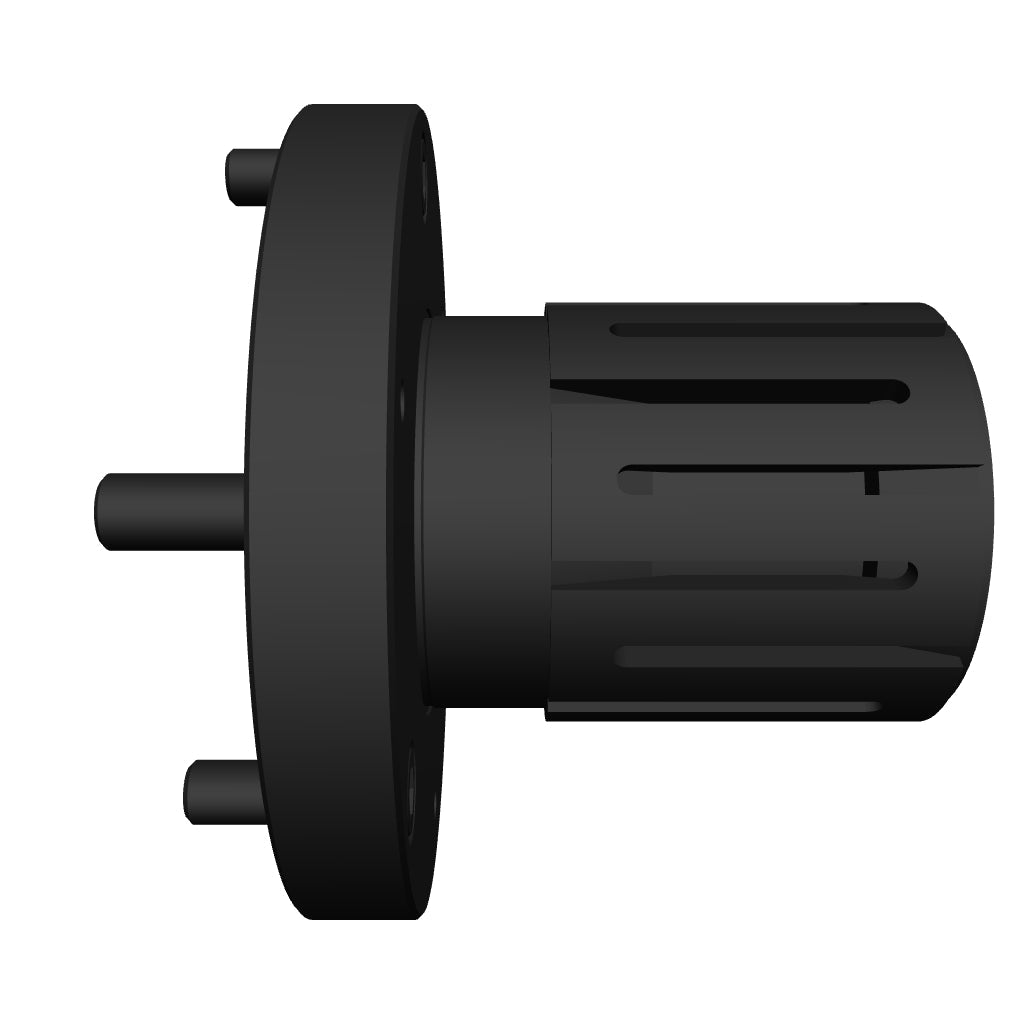

Standard Double Taper Locator Chuck – Long Series
- Regular price
- $2,418.00
| A Min_Cust. piece part grip dia | : | 4 |
| A Max_Cust. piece part grip dia | : | 10 |
| B | : | 3.5 |
| C | : | 3.75 |
| D | : | 1.114 |
| E | : | 1 |
| F _ Flange diameter | : | 7.5 |
Show more dimensions
| G | : | 2.75 |
| H | : | 0.5 |
| J | : | 1.645 |
| K | : | 3.125 |
| L | : | 2 |
| M | : | 0.117 |
| N | : | 7.875 |
| P | : | 3.75 |
| R | : | 1.784 |
| S | : | 0.875 |
| T | : | 3.203 |
| U | : | 1.75 |
| V | : | 1.875 |
