Dimensions
- A Grip diameter
- Min 1.375 – Max 3 in
- B Length
- 1.5 in
- C
- 1.25 in
- D
- 1.124 in
- E
- 0.5 in
- F Flange diameter
- 3 in
- G
- 1.75 in
- H
- 0.375 in
- J
- 1.494 in
- K
- 1.125 in
- L
- 1 in
- M
- 0.124 in
- N
- 5.125 in
- P
- 1.25 in
- Q
- 0.438 in
- R
- 0.773 in
- S
- 0.375 in
- T
- 1 in
- U
- 0.5 in
- V
- 1.25 in

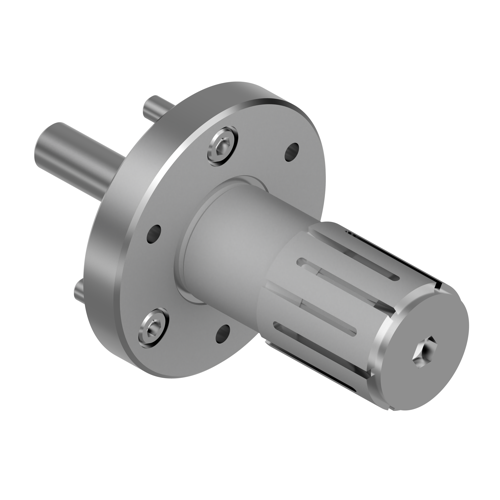

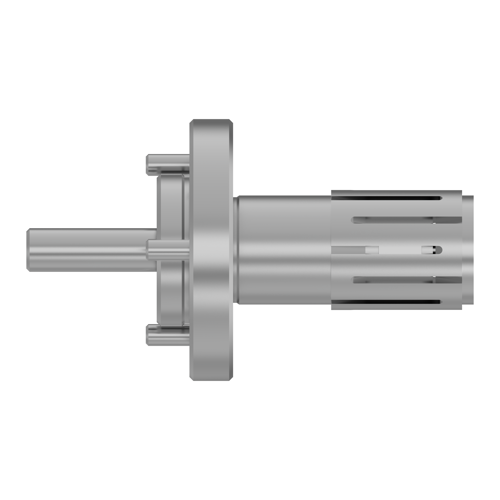

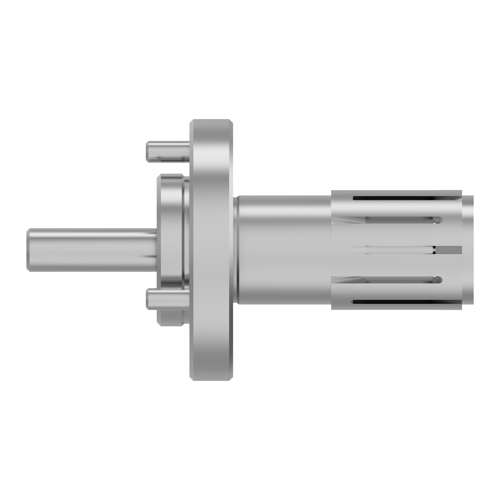

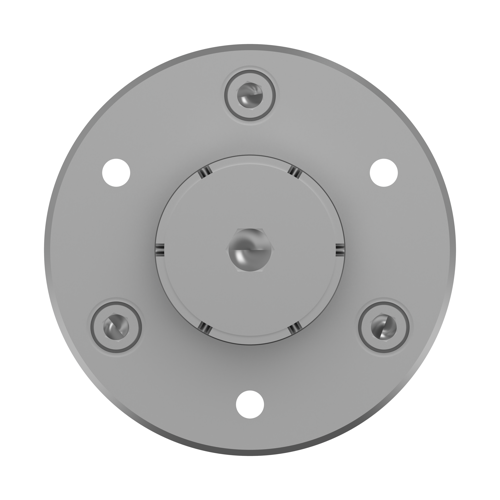

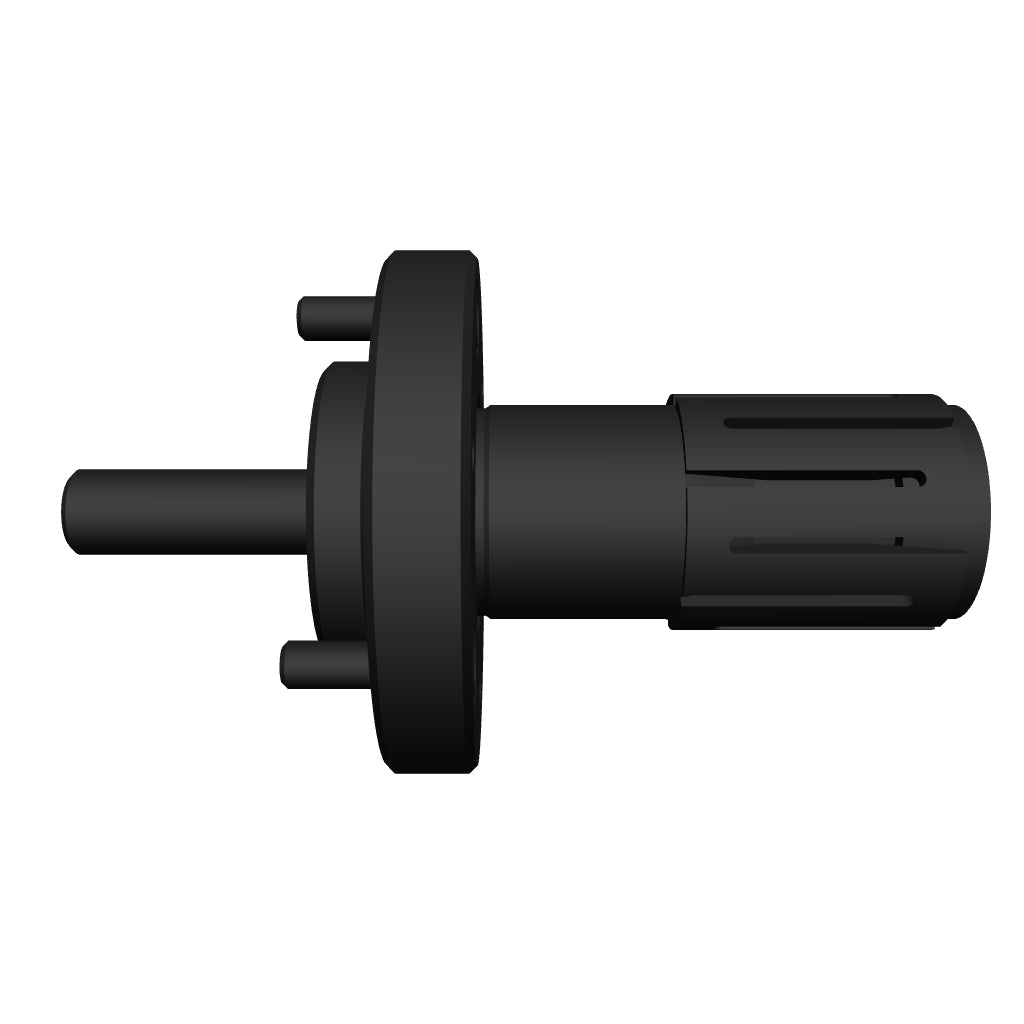

Standard Double Taper Locator Chuck – Long Series. Model DTLL-2.5-DB. Customer piece part grip diameter 1.375–3 in.
Dimensions
- A Grip diameter
- Min 1.375 – Max 3 in
- B Length
- 1.5 in
- C
- 1.25 in
- D
- 1.124 in
- E
- 0.5 in
- F Flange diameter
- 3 in
- G
- 1.75 in
- H
- 0.375 in
- J
- 1.494 in
- K
- 1.125 in
- L
- 1 in
- M
- 0.124 in
- N
- 5.125 in
- P
- 1.25 in
- Q
- 0.438 in
- R
- 0.773 in
- S
- 0.375 in
- T
- 1 in
- U
- 0.5 in
- V
- 1.25 in
Standard Double Taper Locator Chuck – Long Series. Model DTLL-2.5-DB. Customer piece part grip diameter 1.375–3 in.
Documentation
Documentation
Download 3D Files
Download 3D Files
- Regular price
- $1,674.00
