Dimensions
- A Grip diameter
- Min 0.75 – Max 1.5 in
- B Length
- 1.125 in
- C
- 0.6875 in
- D
- 0.695 in
- E
- 0.5 in
- F Flange diameter
- 3 in
- G
- 1.75 in
- H
- 0.375 in
- J
- 0.87 in
- K
- 1.125 in
- L
- 0.75 in
- M
- 0.126 in
- N
- 3.688 in
- P
- 0.688 in
- Q
- 0.344 in
- R
- 0.616 in
- S
- 0.313 in
- T
- 0.5 in
- U
- 0.25 in
- V
- 1.25 in

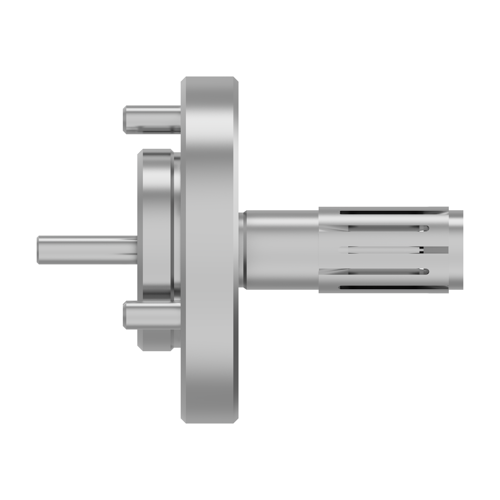

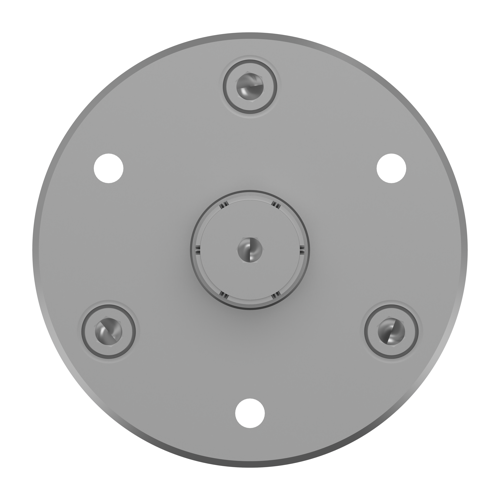

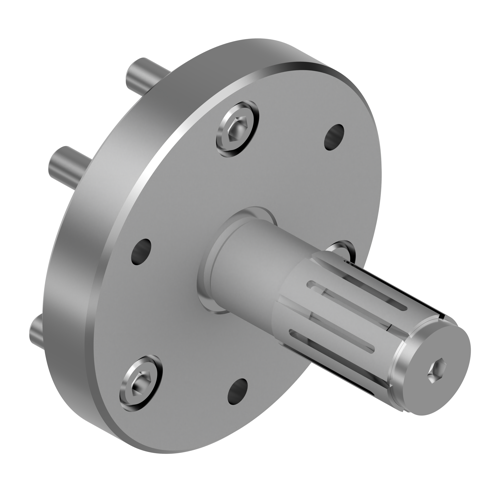

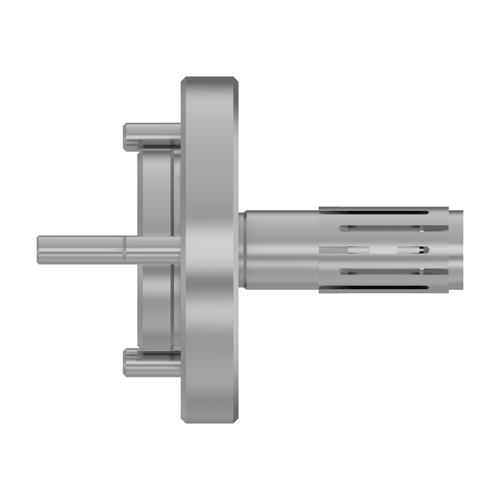

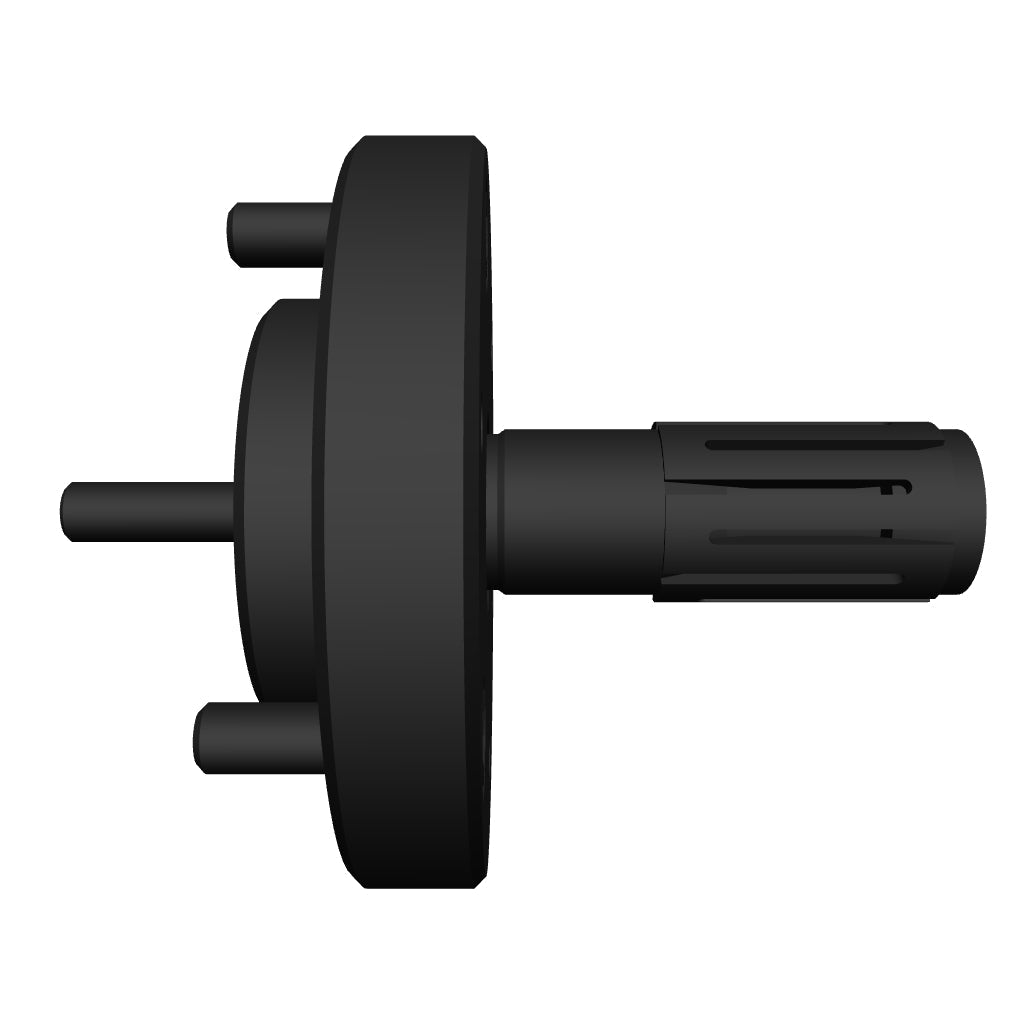

Standard Double Taper Locator Chuck – Long Series. Model DTLL-1-DB. Customer piece part grip diameter 0.75–1.5 in.
Dimensions
- A Grip diameter
- Min 0.75 – Max 1.5 in
- B Length
- 1.125 in
- C
- 0.6875 in
- D
- 0.695 in
- E
- 0.5 in
- F Flange diameter
- 3 in
- G
- 1.75 in
- H
- 0.375 in
- J
- 0.87 in
- K
- 1.125 in
- L
- 0.75 in
- M
- 0.126 in
- N
- 3.688 in
- P
- 0.688 in
- Q
- 0.344 in
- R
- 0.616 in
- S
- 0.313 in
- T
- 0.5 in
- U
- 0.25 in
- V
- 1.25 in
Standard Double Taper Locator Chuck – Long Series. Model DTLL-1-DB. Customer piece part grip diameter 0.75–1.5 in.
Documentation
Documentation
Download 3D Files
Download 3D Files
- Regular price
- $1,547.00
