#5 Double Taper Long Collet

You need to choose options for product.

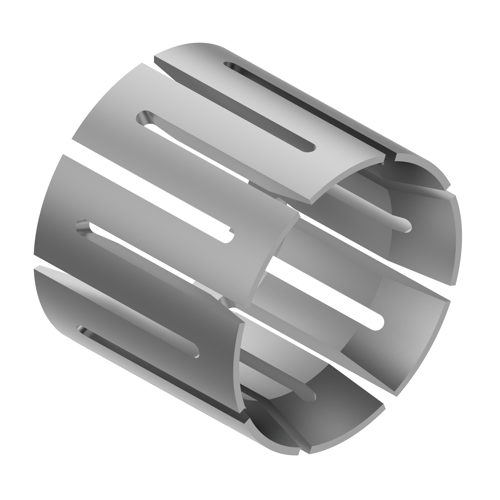

files/d-10226_iso_1c2f0316-d4f3-46e5-9c78-59f571c608fb.png

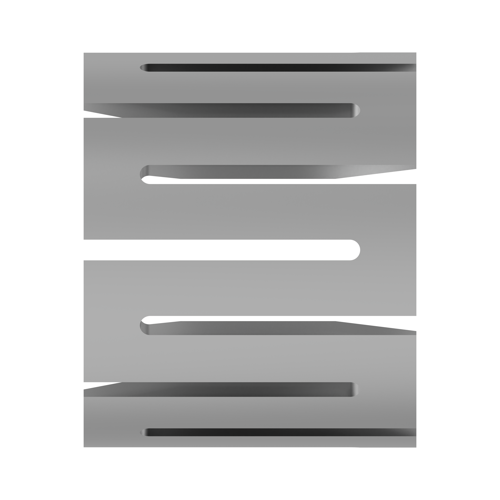

files/d-10226_front_f9aca722-ba66-47bf-92fb-5c54e8c51491.png

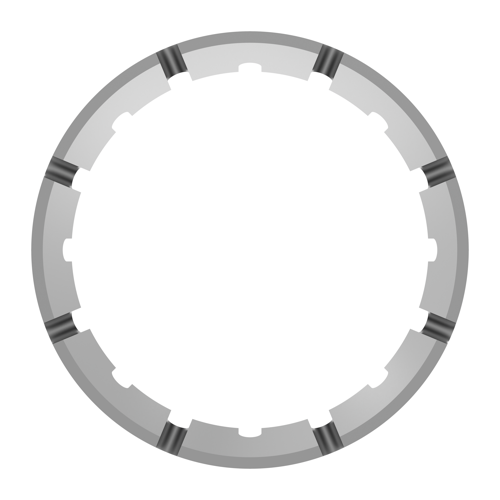

files/d-10226_side_5d169936-0f41-43e9-abe6-22770dd63757.png

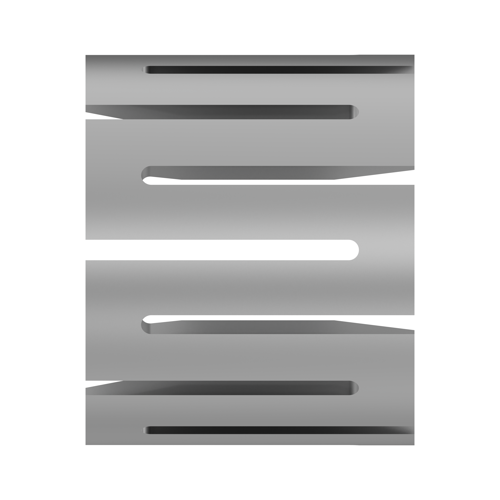

files/d-10226_top_b0c5334c-7c3e-4534-b869-90bd6ef92a37.png
files/collet-size-guide_8ca2e35f-bf1e-4998-b31d-963a68b0e24c.png

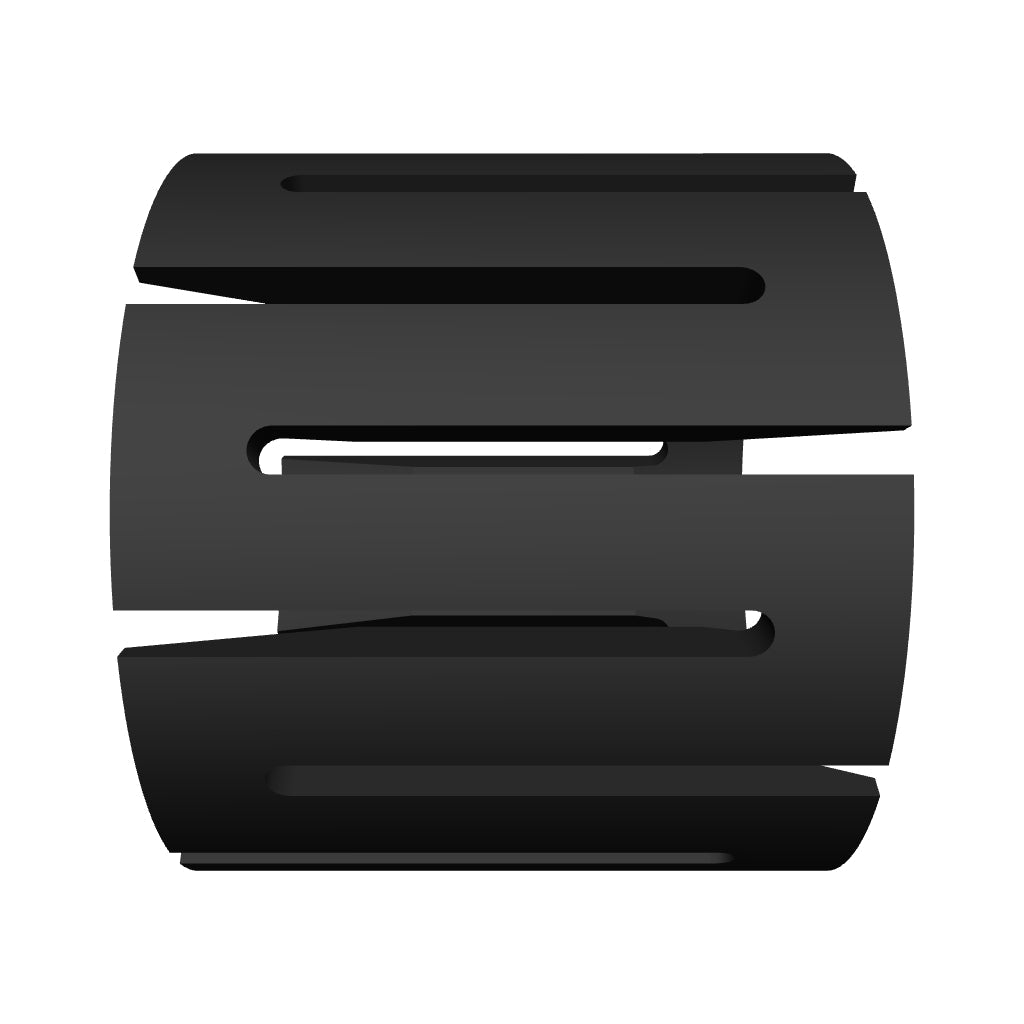

files/preview_images/d-10226_7fa130bc-942b-4c18-a574-ebf67ed2b571.jpg

Dimensions

A Grip diameter: Min 4.75 – Max 11 in

Double Taper Long Collet. Model D-10226. Customer piece part grip diameter 4.75–11 in.

#5 Double Taper Long Collet

D-10226

Regular price: $1,632.00

Dimensions

A Grip diameter: Min 4.75 – Max 11 in

Double Taper Long Collet. Model D-10226. Customer piece part grip diameter 4.75–11 in.

Documentation

Data Sheet

2D Drawing

3D Drawing

Download 3D Files

Creo Parametric (.asm)

Regular price: $1,632.00

Specified Diameter:

Stock Diameter: 4 3/4" (4.750) 5" (5.000) 5 1/4" (5.250) 5 1/2" (5.500) 5 3/4" (5.750) 6" (6.000) 6 1/4" (6.250) 6 1/2" (6.500) 6 3/4" (6.750) 7" (7.000) 7 1/4" (7.250) 7 1/2" (7.500) 7 3/4" (7.750) 8" (8.000) 8 1/4" (8.250) 8 1/2" (8.500) 8 3/4" (8.750) 9" (9.000) 9 1/4" (9.250) 9 1/2" (9.500) 9 3/4" (9.750) 10" (10.000) 10 1/4" (10.250) 10 1/2" (10.500) 10 3/4" (10.750) 11" (11.000)
