#5 Double Taper Short Collet

You need to choose options for product.

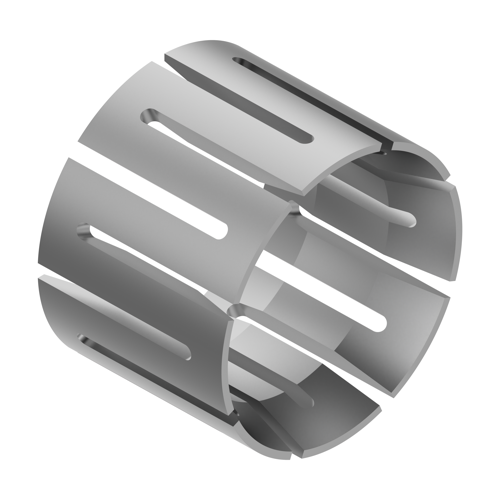

files/d-10214_iso_55855f0b-45f8-4a31-bc52-84e6a441df99.png

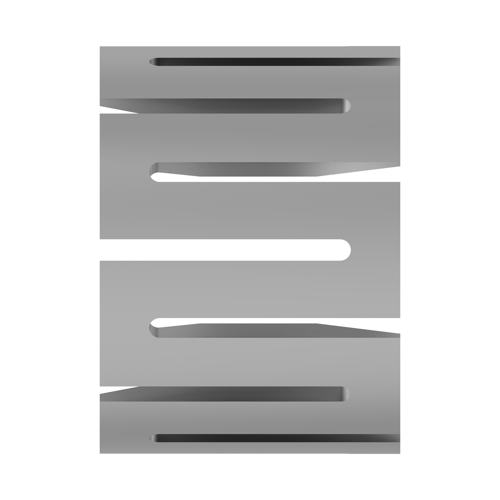

files/d-10214_front_f7b15c18-af6d-450d-a8ba-9fe72c4eedf4.png

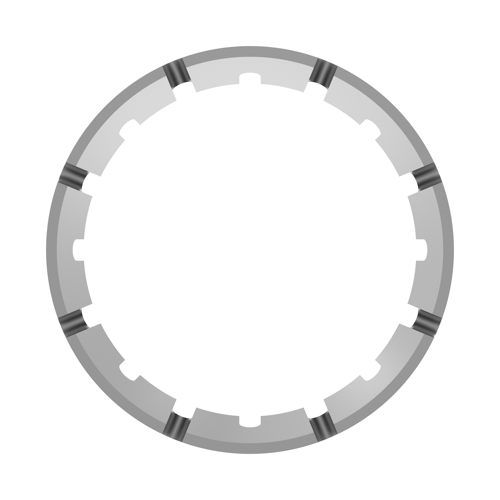

files/d-10214_side_759cc29b-4dad-4529-984f-c9231edbcab6.png

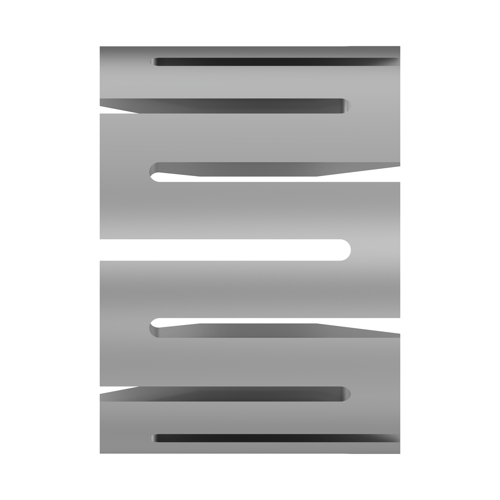

files/d-10214_top_0f239242-29a5-43bc-a077-dccab5c20bde.png
files/collet-size-guide_67a08b9d-7db5-45a2-806a-2cb92fc73afe.png

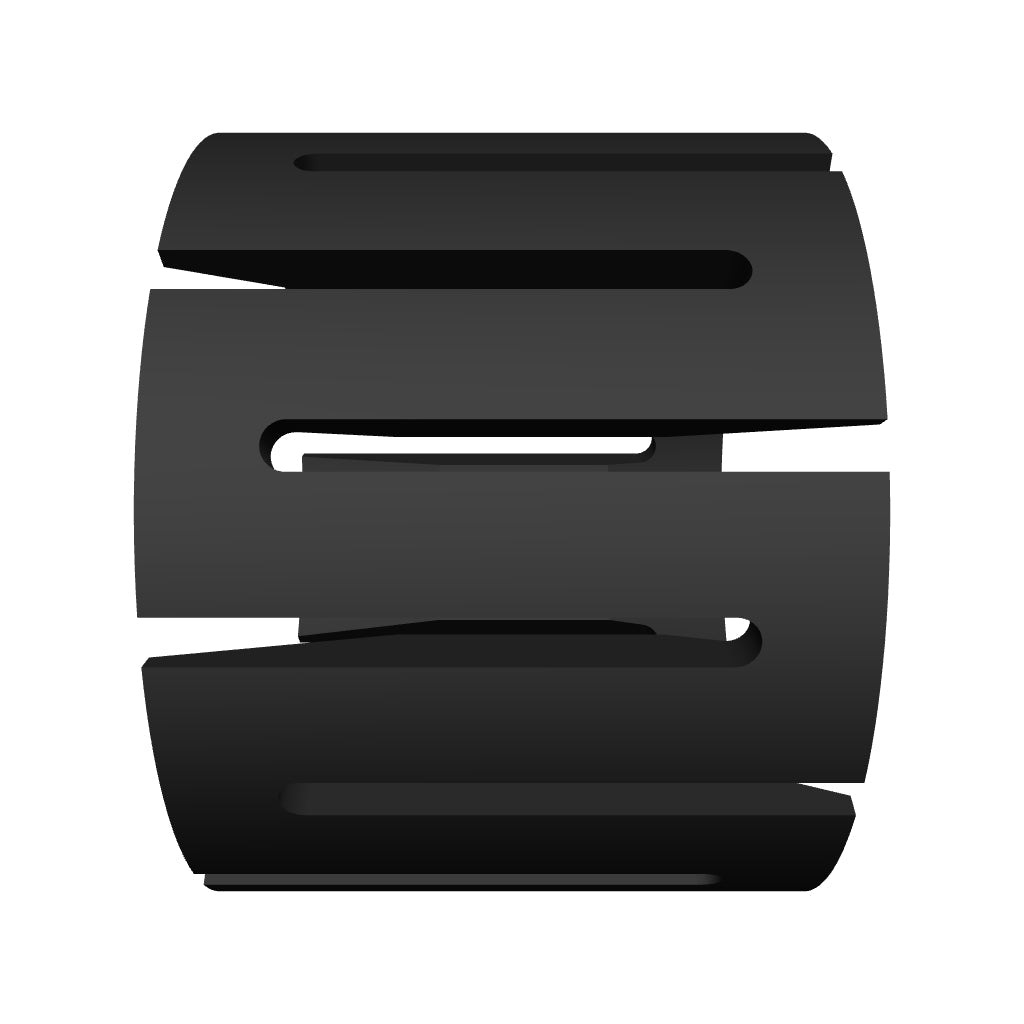

files/preview_images/d-10214_2ec2914f-90d8-40ef-bdcc-298d9fbdf715.jpg

Dimensions

A Grip diameter: Min 4.75 – Max 11 in

Double Taper Short Collet. Model D-10214. Customer piece part grip diameter 4.75–11 in.

#5 Double Taper Short Collet

D-10214

Regular price: $1,555.00

Dimensions

A Grip diameter: Min 4.75 – Max 11 in

Double Taper Short Collet. Model D-10214. Customer piece part grip diameter 4.75–11 in.

Documentation

Data Sheet

2D Drawing

3D Drawing

Download 3D Files

Creo Parametric (.asm)

Regular price: $1,555.00

Specified Diameter:

Stock Diameter: 4 3/4" (4.750) 5" (5.000) 5 1/4" (5.250) 6" (6.000) 6 1/4" (6.250) 6 1/2" (6.500) 6 3/4" (6.750) 7" (7.000) 7 1/4" (7.250) 7 1/2" (7.500) 7 3/4" (7.750) 8" (8.000) 8 1/4" (8.250) 8 1/2" (8.500) 8 3/4" (8.750) 9" (9.000) 9 1/4" (9.250) 9 1/2" (9.500) 9 3/4" (9.750) 10" (10.000) 10 1/4" (10.250) 10 1/2" (10.500) 10 3/4" (10.750) 11" (11.000)
