Standard External
Collet Chucks

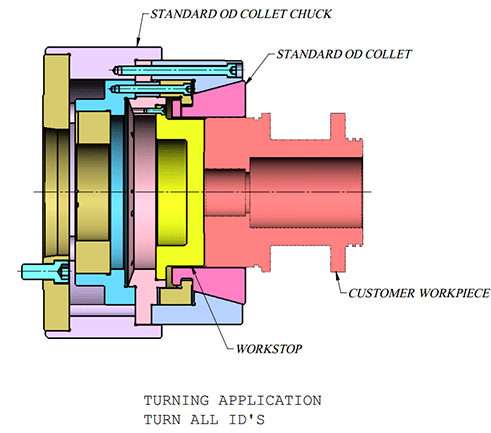

  • Standard External Collet Chuck

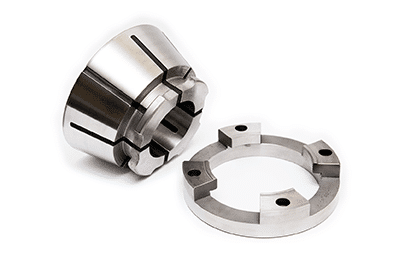

  • External Collet Chuck

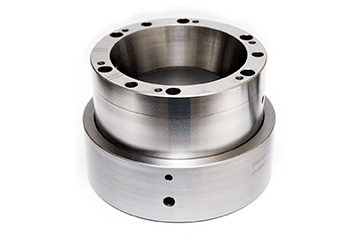

  • OD Collet Chuck Assembly

Overview

  • Robust off-the-shelf external collet chuck for first operations and ideal for second and subsequent operations
  • Quick change collets with long 360 degree grip length
  • Virtually unaffected by centrifugal force with strong pull back action
  • .0005 T.I.R. significantly exceeds the abilities of 3-jaw chucks
  • Thru hole design with quick change collets

Stocked Product Line

  • OD-3000 collet blanks in stock for 1/2" to 3" thru and 4 1/2" diameter max
  • OD-6500 collet blanks in stock for 1 1/2" thru 6 1/2" thru and to 8" diameter max
  • OD-3000 thru hole capacity of 3" and to 4 1/2" stepped
  • OD-6500 has 6 1/2" thru hole capacity (to 8" stepped), the largest capacity of this type of chuck on the market
  • Adapter options (A-2 5", 6", 8", and 11") in stock with drawbar connector and workstops available

Applications

  • Uses: primarily turning, with gear machining, drilling/milling, and more
  • Workstops can be added inboard or outboard in various lengths and configurations
  • Extremely versatile for multiple operation setups
  • Engineered Solutions available for your Precision Workholding needs
