Quick Change
Chucks & Adapters

Overview

Smaller part runs, just in time delivery, and changeover for a variety of part sizes, configurations, and required machining make quick change more necessary than ever
Speedgrip standard and Sabertooth collet chucks are naturally quick change for families of parts
Engineering options for changeover of collets, workstops, and complete chucks quickly and effectively

Splined Curvic coupling systems can be simple but very cost prohibitive
Speedgrip Quick Change system offers simplicity and cost effectiveness

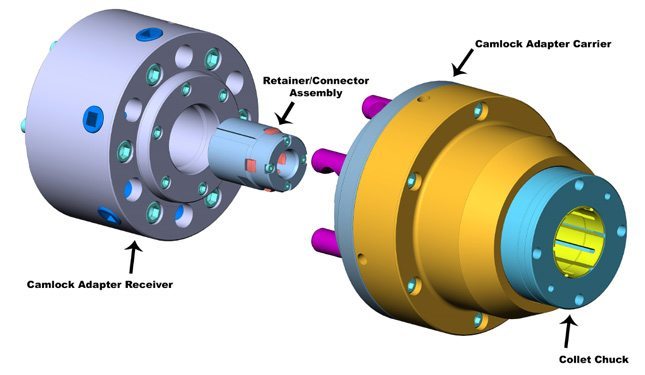

Cam-lock technology with today's carrier and receiver provides accurate, fast, and affordable changeover

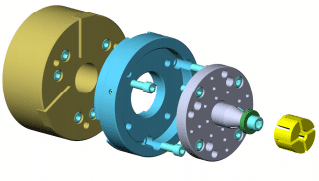

Mount a Cam-lock adapter receiver to the spindle and retainer connector to the drawtube

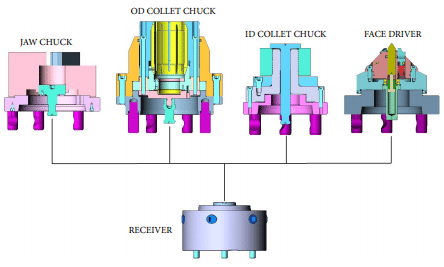

Carrier adapter mounts to jaw chuck, ID collet chuck, OD collet chuck, or face driver with retention knob

Ideal when 1st operation is complete on a jaw chuck and the next operation calls for single, double, or Sabertooth collet chucks
Quick solution when removing the jaw chuck for a short run is not feasible

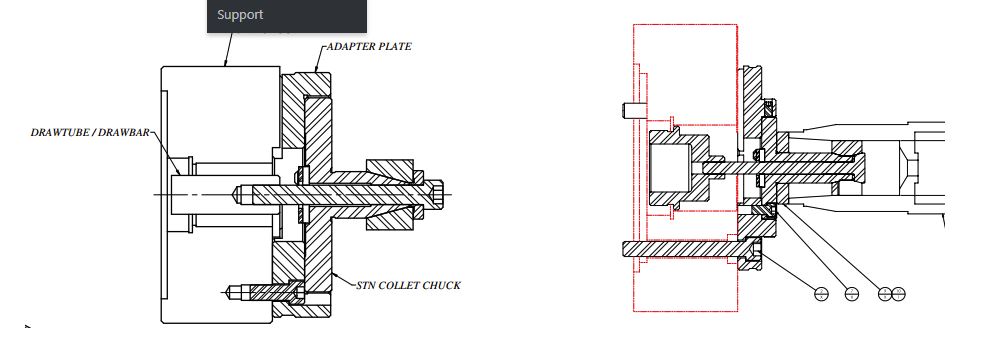

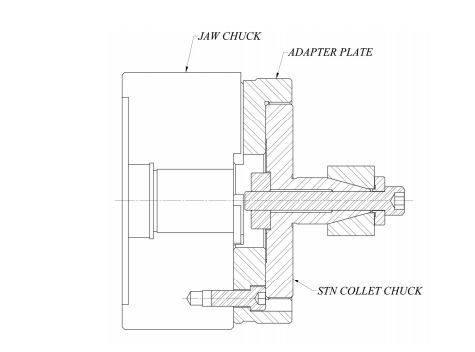

Remove only the top jaws and mount the adapter to the face of the jaw chuck
Ready in minutes with the concentricity and repeatability expected from a collet chuck
Change collets for additional part sizes without additional setup
Manually actuated or connected to the machine drawbar/tube through an intermediate connector (one-time drawtube modification)

Engineers design workholding for the level of quick change you need to run parts effectively and efficiently
Reputation for Engineered Solutions for your Precision Workholding
