Fixtures, Tombstones
& Pallet Chucks

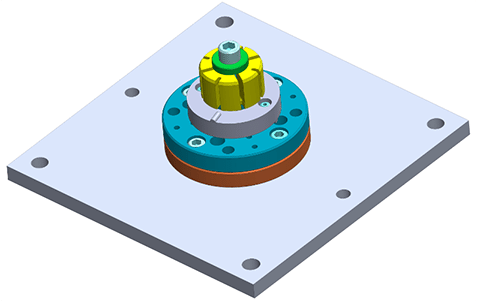

  • Fixtures, Tombstones & Pallet Chucks

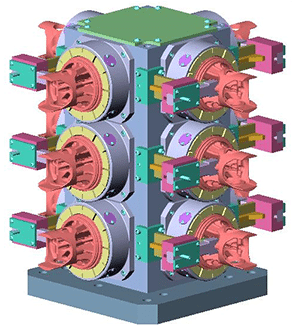

  • Fixture Application

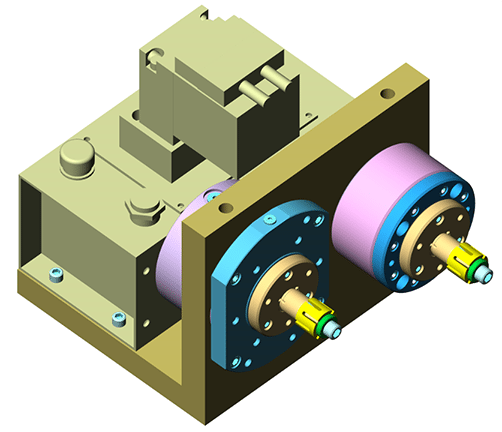

  • Tombstone Setup

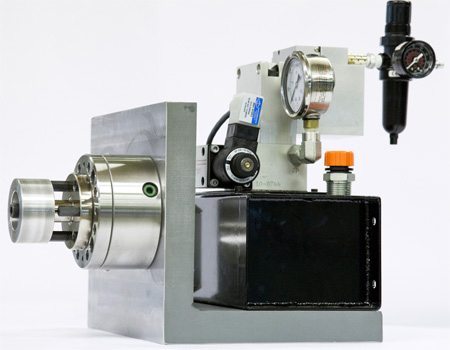

  • Pallet Chuck

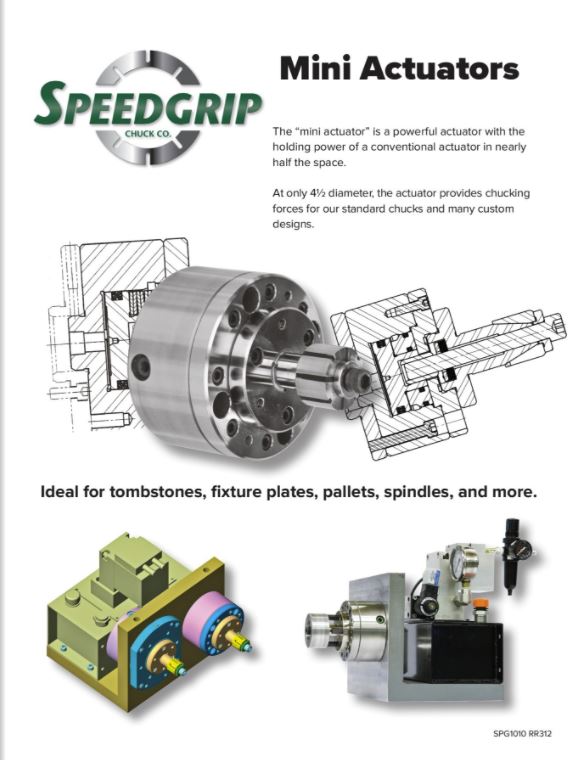

  • Mini Actuators

  • Example Drawing 1

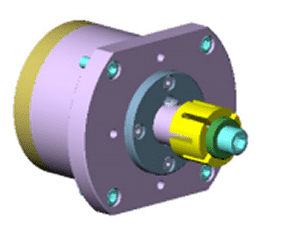

  • Example Drawing 2

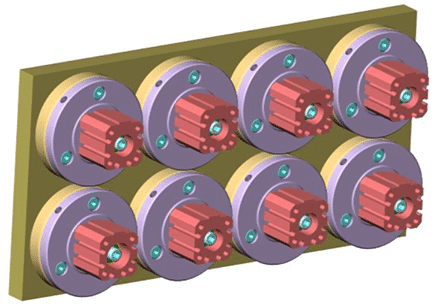

  • Example Drawing 3

Overview

  • Speedgrip has been designing and building "Fixture Friendly" chucks from a simple angle plate with a standard manually actuated chuck to multiple custom designed internal and external gripping chucks mounted on a tombstone or pallet with built-in cylinder, coolant flush, air confirmation, and many other features.

Standard & Cost-Effective Solutions

  • Standard chucks mounted on a base or angle plate provide simple and cost-effective workholding.
  • Add an actuator or our JF locator with a mini actuator, utilizing standard or mostly standard and readily available components for a multitude of applications.

Flexible Configurations

  • Chucks are often supplied for our customer to install into their units for location or part support.
  • Internal or external gripping, small or large, one or several, air or hydraulic actuated or released as necessary.

Engineered Solutions

  • Our engineers will design workholding to grip your parts for a specific fixture, tombstone, or pallet for your operation(s) with many other features to run parts as effectively and efficiently as possible.
  • Our engineers have earned the reputation for offering Engineered Solutions for your Precision Workholding.
Request a Quote
