Cameron Sabertooth
Chucks & Arbors

  • Cameron Sabertooth Chuck & Arbor

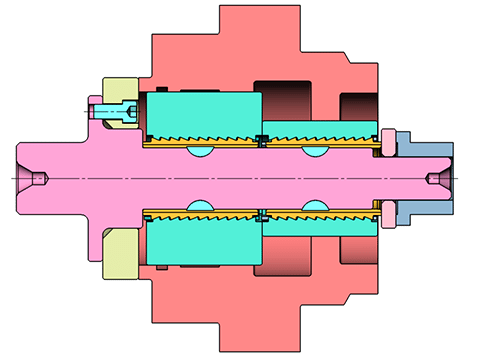

  • Sabertooth Internal Grip

  • Stacked Sleeves

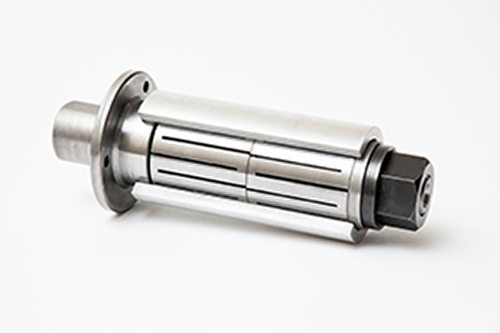

  • Multi-Diameter Gripping

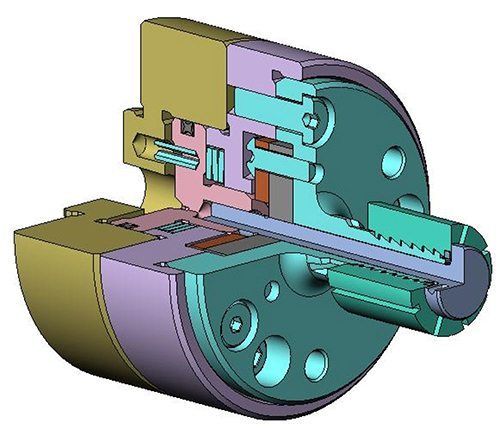

  • Example Drawing

Overview

  • Unique, versatile internal gripping chuck or mandrel with short tapers for continual grip along the full sleeve or stack of sleeves
  • Ideal for long and thin parts
  • Stocked chucks, mandrels, and sleeves from 1/2" through 8" on various taper sizes and diameters
  • Single or double stacked sleeves available
  • Generous expansion with pullback or non-pullback as needed

Design Advantages

  • A family of shorter parts can be gripped on the same arbor without over-expanding uncovered areas — the only expanding chuck on the market with this attribute
  • Engineers design for specific applications using four or more stacked sleeves for extremely long parts
  • Multi-diameter expanding sleeves grip in more than one diameter for greater part engagement and rigidity
  • Engineered solutions available for precision workholding needs

Specifications

  • Uses: turning, drilling, milling, balancing, gear machining, grinding, inspection, and fixtures
  • Collets from 1/2" up through 8 1/2" stocked in 1/8" increments
  • With or without pullback action
  • Repeatability .0006–.0008 T.I.R. typically
  • Actuation available: manual, drawbar/tube, and built-in cylinders
